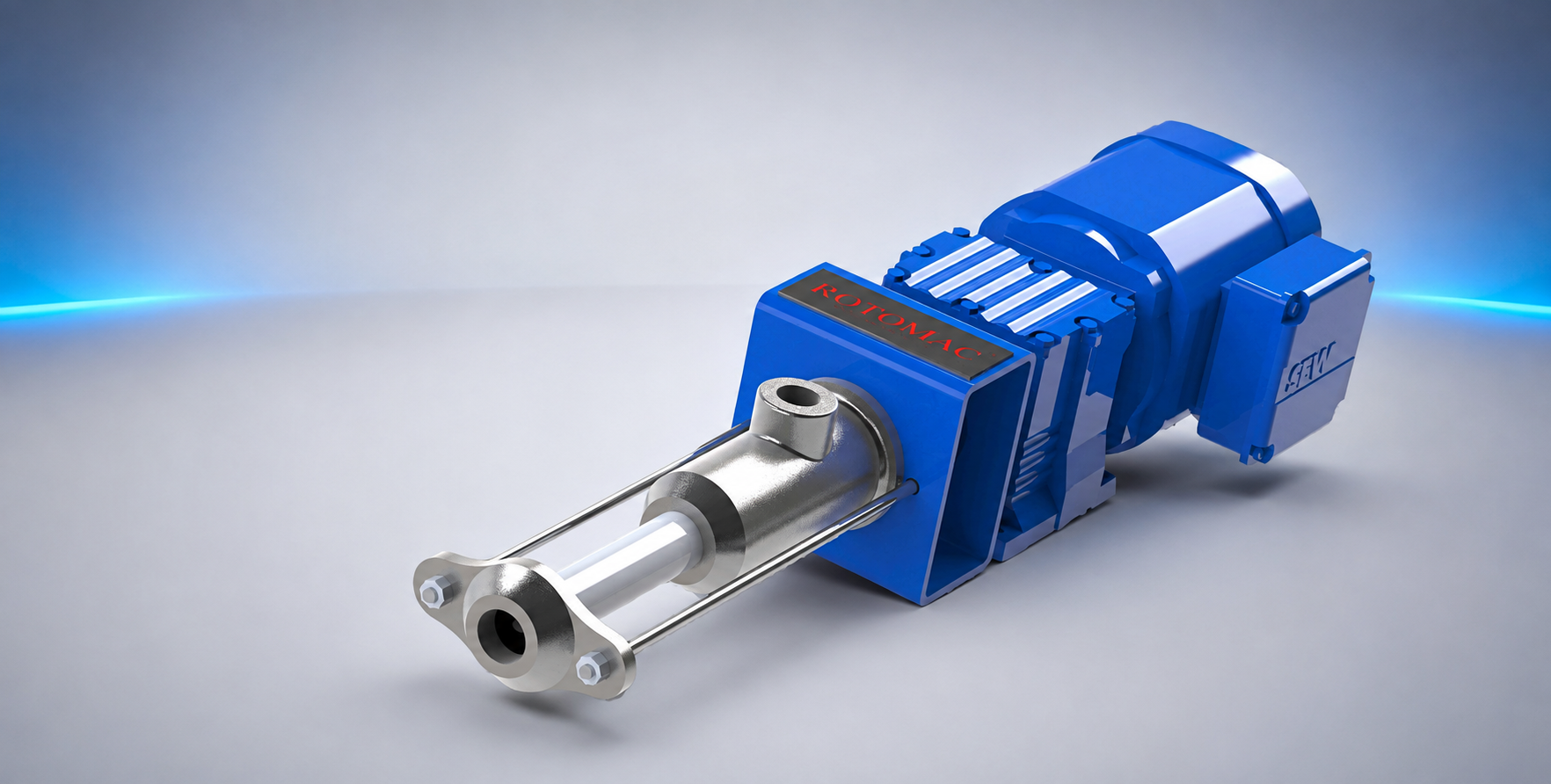

MP – Pump For Precise Metering And Dosing
MP Range progressive cavity pumps are used in virtually all industries for metering and dosing precise quantities. They are particularly good for minimal pulsation conveyance of thin to viscous fluids, as well as corrosive media containing solids.
Capacity: 1–550 L/h
Pressure: ≤ 24 bar
Economical
Reduced costs due to inexpensive rotating unit
No vapor locking
Cavity design allows for conveyance of liquids, solids, and gases
Ease of operation
Valveless flow control for ease of operation
Performance efficiency
Low slip (internal back flow) provides performance efficiency and less wear on components
Easy maintenance
Simple and predictive maintenance due to minimal components
Durable
High corrosion resistance due to the variety of components made of Hastelloy C or Titanium
Exact Dosing
High dosing accuracy (deviation only +/- 2%)
- Discharge Port:
Only available In stainless steel, Threaded connections to BSP or NPT standards
- Rotor:
Wear resistant and corrosion-resistant materials.
- Stator:
The seal on both ends is molded as an integral part of the elastomeric stator.
- Suction Housing:
Available in Stainless, with drain plug and connections for pressure/vacuum gauge. Only Threaded connections are available ,can be rotated in 90° increments.
- Yoke Shaft
Connects the drive shaft to the joint. Upon request, it is available with wear resistant coating
- Shaft Sealing:
Only available with Mechanical seal configurations
- Close Coupled Drive Connection:
For easy dismantling of the pump and drive enabling quick replacement of the rotating parts and shaft seals. The yoke shaft pin secures the shaft connection to the drive and the Water Thrower protects the drive from contamination/gland leakage.
- Body:
For connection of pump and drive and to secure the assembly to the baseplate or directly to the foundation.
- Drive:
Geared motors, variable speed drives or frequency controlled motors of all major manufacturers, directly flanged to the pump without additional couplings or guards. Covers made of stainless steel are available
